1.High cell efficiency with quality silicon materials for long term output stability.
A grade full power fast delivery 400W 450W anern paneles solares long warranty 30 years 550W outdoor solar panel
- Parameter
- Related products
- Inquiry
ALLRUN

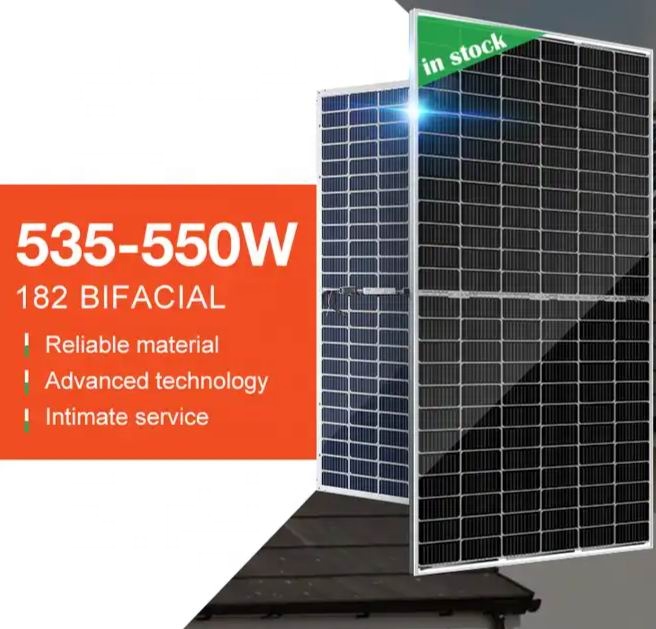

A Grade Full Power Fast Delivery 400W 450W Anern Paneles Solares Long Warranty 30 Years 550W Outdoor Solar Panel - the greatest solution for the power needs. The ALLRUN brand promises top-quality construction and reliable performance, with an emphasis on minimizing environmental impact.
Made for outside usage, these panels are solar technology is exemplary, with wattage including 400W to 550W. No matter is real your time requirements are, these panels will surpass your targets. Whether you're powering a cabin is little an enterprise is large commercial ALLRUN has you covered.
The a sum Comprehensive Power Fast Delivery 400W 450W Anern Paneles Solares longer Warranty 30 years Outdoor is Solar that 550W is making usage of just the finest materials and manufacturing is advanced. Which means the panels are especially efficient, durable, plus in a posture to withstand perhaps the climate are harshest.
One of the standout top popular features of these panels being ALLRUN is solar guarantee that very long. These panels are assured to provide performance this is certainly very good as much as 36 months - absolutely help enjoy dependable, low-cost energy for a long time in the foreseeable future. This guarantee is merely a testament to ALLRUN's dedication to consumer and quality care.
An additional benefit is key of solar power systems will be the circulation is quick. ALLRUN realizes the time scale is to utilize this essence regarding panels are installing are solar which will be the reason why they supply quick and delivery is efficient customers all around the globe. Irrespective of where you may be positioned, you could expect ALLRUN getting the panels for your requirements quickly and hassle-free.
So just why select the A Grade Full Power Fast Delivery 400W 450W Anern Paneles Solares Long Warranty 30 Years 550W Outdoor Solar Panel from ALLRUN? The clear answer is not difficult: these panels offer unbeatable performance, reliability, and value. Making use of their long warranty, fast delivery, and exceptional wattage output, these are the perfect option for anyone trying to upgrade their energy system. Whether you are a new comer to solar powered energy or perhaps you're a practiced pro, you may not be disappointed with ALLRUN's solar energy panels. So just why wait? Order yours today and begin enjoying most of the advantages of clean, renewable power.
Electrical Characteristics |
AR550M-24 |
|
Maximum power at STC (Pmax) |
550W |
|
Optimum operating voltage (Vmp) |
56.5V |
|
Optimum operating current ( lmp) |
9.73A |
|
Open-circuit voltage (Voc) |
65.9V |
|
Short-circuit current(lsc) |
10.29A |
|
Short-circuit current temperature coefficient |
(0.048+0.015)%/℃ |
|
Open-circuit voltage temperature coefficient |
(-0.28%±0.015)/℃ |
|
Peak power temperature coefficient |
-(0.37±0.05)%/℃ |
|
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s) |
47±2℃ |
|
Operating temperature |
-40℃ to 85℃ |
|
Maximum system voltage |
1500V Dc |
|
Power tolerance |
+0-3% |
|
STC: Irradiance 1000W/m2,Module temperature 25℃,AM=1.5 |
||
Specification |
AR550M-24 |
|
Cell |

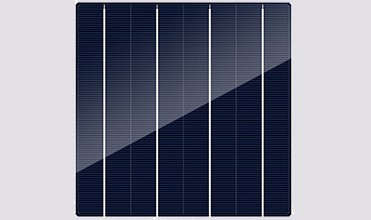

Mono-crystalline silicon solar cells |
|
No.of cell and connection |
144 (6×12+6×12) |
|
Dimension of module |
2256mm*1133mm*35mm |
|
Weight |
29(±1)kg |
● Anti reflective glass
● Translucency of normal luminance is increased by 2%
● Module efficiency is increased by 2%
● Self-cleaning function
● 16-22% High Efficiency PV Cells
● Color sorting ensure consistent appearance on each module
● Anti-PID
● Conventional frame
● Silver or black frames are optional
● Boost bearing capability and prolong service life
● Serrated-clip design tensile strength
● Seal-lip designglue injection120N Tensile Strength Frame
●110% Seal-lip Design Glue Injection
● engineering custom edition
● Quality diode ensures module running safety
● IP68 protection level
● Heat dissipation
● Long service life
1.High cell efficiency with quality silicon materials for long term output stability.
We, one subsidiary company of Qingdao ALLRUN Group, are one of the high-tech enterprises specialized in solar panel, solar power projects and Permanent magnet generator (PMG).
We have our own solar panel factory (and solar appliance products), wind products factory (include PMG), so we can well control the quality of the products. And we have our own 25-personed QC dept. And we also have 10 specialists in designing and installing solar street lights, solar power stations (solar system), and kinds of solar water pump, solar water heaters in different sizes and models, as well as solar appliances, wind turbines systems and wind appliances. We have been honored for the excellent work, such as the Project of the municipal administration, the road administration project, the development of residential project and island project, and the supply of the heater and power voltage station.
At present, our main products include solar system products, such as various types of solar panel and solar system, solar photovoltaic applications, permanent magnet generators and wind generation sets.
If you are interested in our products, please do not hesitate to contact us with more information. We are looking forward to cooperating with you
